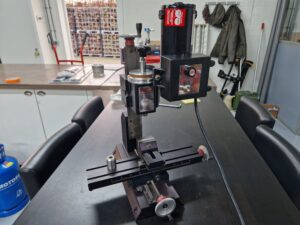

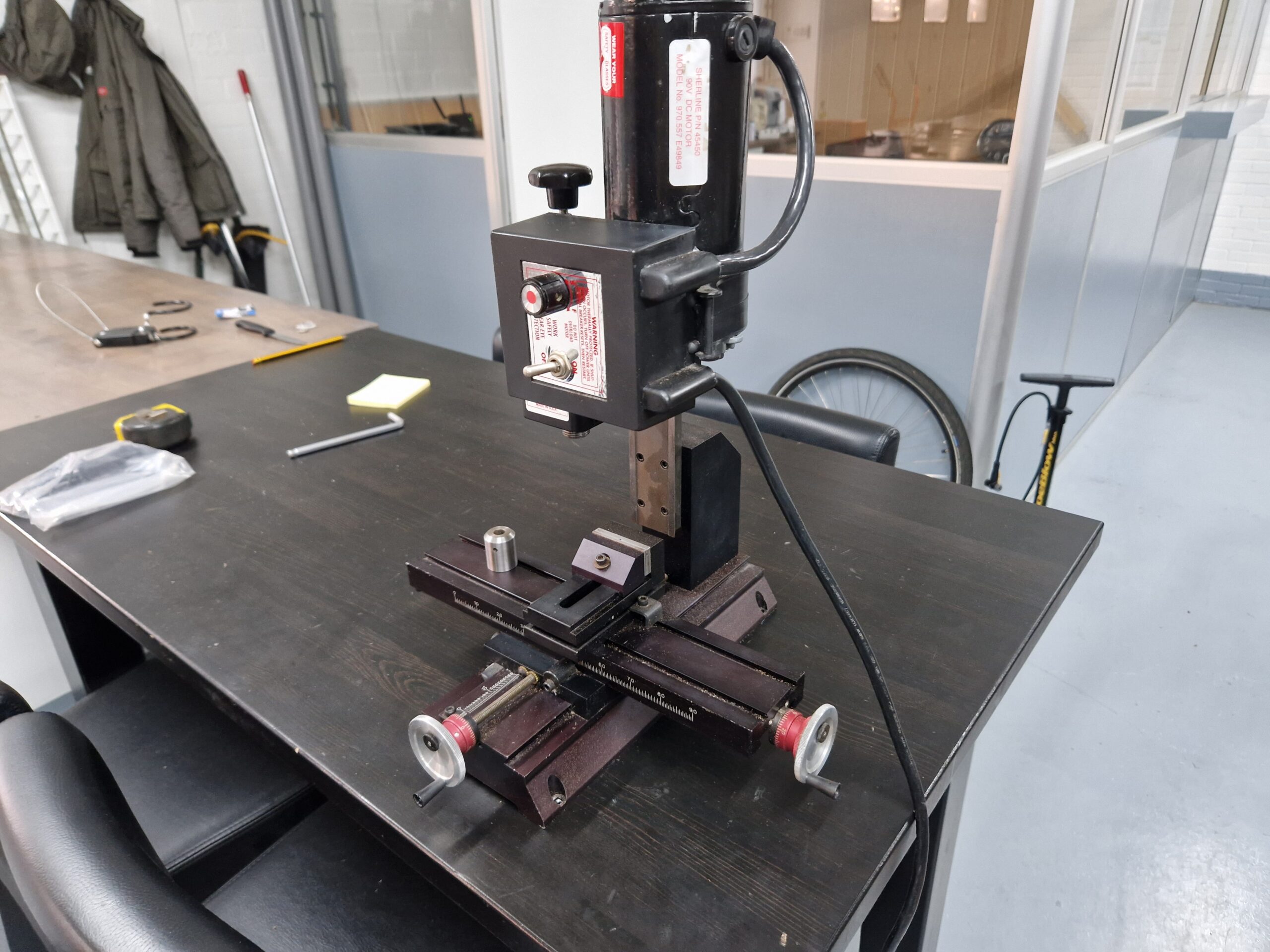

About Sherline Deluxe Tabletop Mills

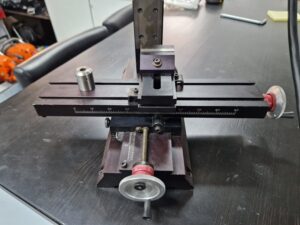

The 5400-series deluxe tabletop mill is our most popular milling machine. It comes equipped with all of Sherline’s standard features upgraded to include a laser-engraved 12″ (305mm) solid aluminum base for 2″ of additional Y-axis travel, laser-engraved scales on the table and base, 2-1/2″ (63mm) zero adjustable handwheel on the Z-axis and 2″ (51mm) zero adjustable handwheels on the X- and Y-axes, a mill headstock spacer to provide more throat distance and a 1/4″ drill chuck and drawbolt.
All Sherline milling machines feature precision machined dovetailed slides with adjustable gibs, permanently lubricated spindle bearings, adjustable preload anti-backlash feed screws, and a high-torque 90V DC motor with electronic speed control. Speed is continuously variable from 70 to 2800 RPM without gear or belt changes. A second pulley position is also available to provide extra torque at low RPM if needed.
Our tabletop mill is perfect for the customer looking for a mini milling machine to make small, precision parts. All our milling machines are made in the USA, and our customer service is second to none. Although our machines are small, they can produce high-quality precision parts. Our 10″ tabletop mill will not only cut wood and plastic but is also rigid and accurate enough to cut aluminum and steel parts. This mini mill is a desktop-size machine with full-size machine precision and accuracy.
